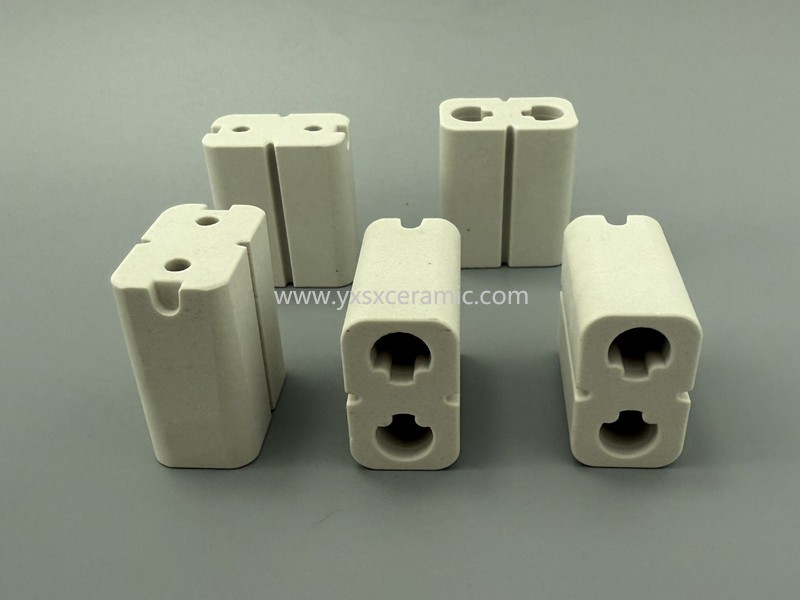

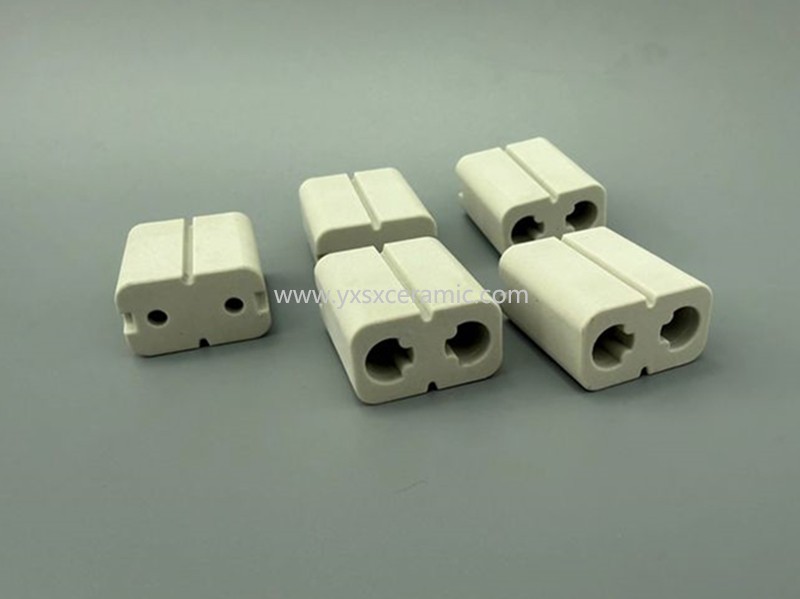

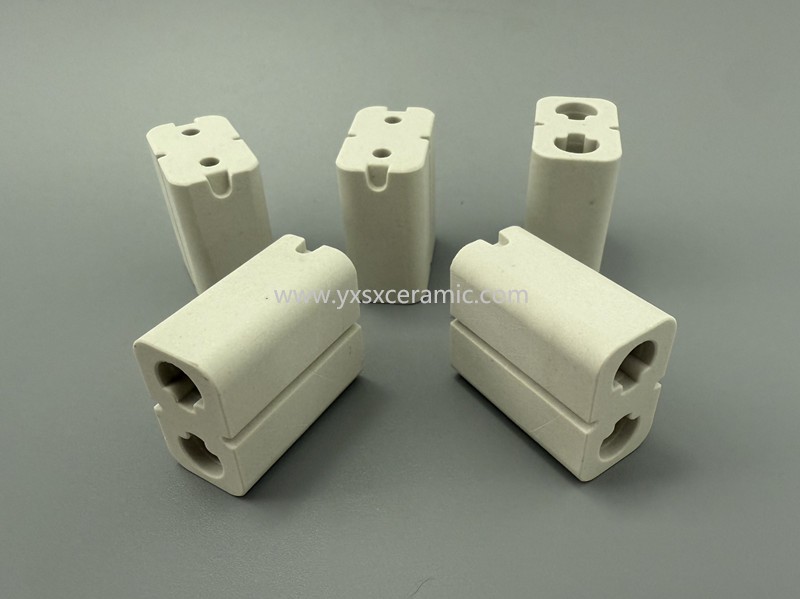

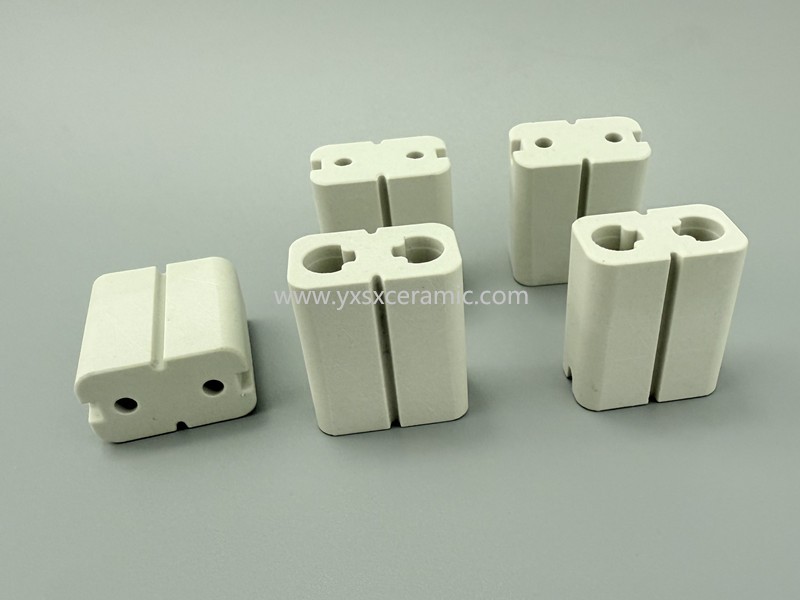

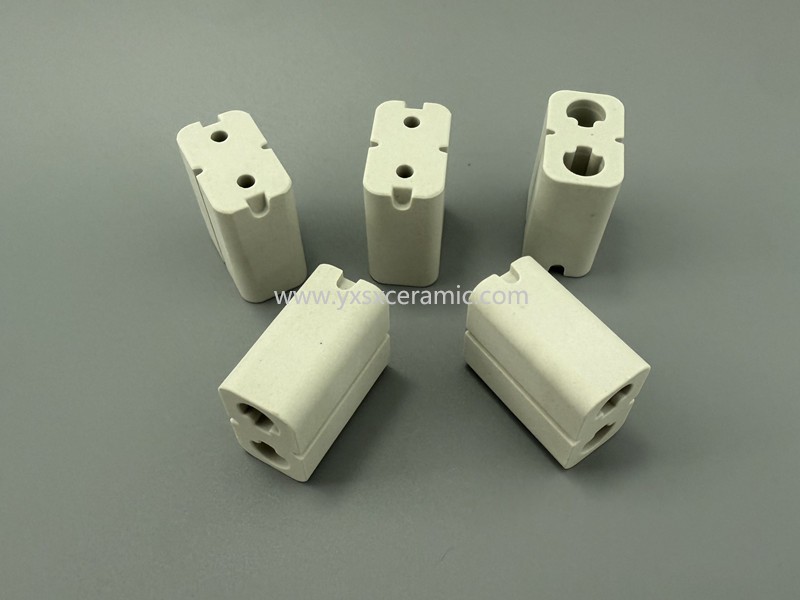

Name: ceramic socket cup ceramic plug C520 cordierite shenxing ceramic
Availability: InStock

ceramic socket cup ceramic plug C520 cordierite shenxing ceramic

Cordierite ceramic plug is a custom‑shaped refractory component made of cordierite (magnesium aluminosilicate, chemical formula: 2MgO·2Al₂O₃·5SiO₂), one typical form of cordierite insulating / heat‑resistant ceramic parts.

This ceramic plug is specially designed for high‑temperature working environments with frequent heating‑cooling cycles. Thanks to its ultra‑low coefficient of thermal expansion, it provides outstanding thermal‑shock resistance, which prevents cracking under rapid temperature fluctuation, the most important advantage compared with alumina or steatite ceramic plugs.

설명

Cordierite Ceramic Plug

Made of magnesium aluminosilicate, cordierite ceramic plugs offer outstanding thermal‑shock resistance due to low CTE. Good electrical insulation and high‑temperature dimensional stability up to 1300°C. Custom geometries are available for burners, thermocouple assemblies and kiln supporting applications.

Technical Parameters

Item	Unit	Zirconia ceramic	99% alumina ceramic	96% alumina ceramic	95% alumina ceramic	Steatite ceramic	Mullite ceramic	Cordierite ceramic
Bulk density	g/cm3	6	3.8	3.7	3.6	2.8	2.2	2.3
Water absorption	%	0	0	0	0	0	12	12
Thermal Conductivity	(w/m.k)	10	19-30	16-28	14-24	2-3	2-6	1.3-1.8
Resistance to thermal shock,Minimum	TK?	70	150	140	140	80	150	300
Withstand voltage,Minimum	KV	15	20	18	18	20	25	-
Flexural strength	Mpa	1000	300	280	240	120	120	30
Sintering temperature	℃	1500	1670	1600	1600	1250	1250	1250
Maximum working temperature	℃	1200	1500	1200	1200	800	1000	1000

Application

Typical Applications of the ceramic plug socket cups

• Insulating plug / stopper for burner, gas ignition assembly

• Thermocouple insulating plug and temperature‑probe fixture

• Locating plug & spacer for kiln furniture, furnace support

• Stud welding ceramic ferrule / plug

• Heat‑resistant blocking component for heating equipment

Advantages

Key Features & Advantages of the cordierite ceramic plug socket cups

1 Excellent thermal shock resistance

Low CTE (typically 1–3 ×10⁻⁶ /°C). It can survive repeated sharp temperature changes without fracture.

2. Good electrical insulation

High volume resistivity and stable dielectric property, suitable for insulation and isolation in heating assemblies, sensor fixtures or burner systems.

3. High‑temperature dimensional stability

Max continuous service temperature up to 1100–1300°C. Minimal deformation under long‑term heat load.

4. Cost‑effective refractory solution

Lower material cost than high‑purity alumina when thermal cycling resistance is the primary requirement.

5. Customizable geometry

We can produce various plug shapes, inner holes, steps, grooves by dry pressing, extrusion or isostatic pressing according to customer drawings.

Certificate

FAQ

1. How can you get quotation of the ceramic plugs?
Please kindly send me your drawing with technic requirement and demand quantity.
If you don't have the drawing, please kindly courier samples to us. we will quote our best price in 24 hours.

2. How can you get alumina ceramic socket cups samples?
We can supply free samples if we have them in stock. If we haven't produce the products, we can supply some free samples after getting tool fee. Please take note that the courier fee should be at destination.

3. What’s the lead-time for samples and batch orders of the cordierite ceramic cups plugs?
It is 18days for supplying samples. It is around 25days for batch orders.

4. Can I visit you?
Sure. If you're a volume buyer and would like to visit our in-house products and production line of ceramic smoking pipes, please contact us to make an appointment.
